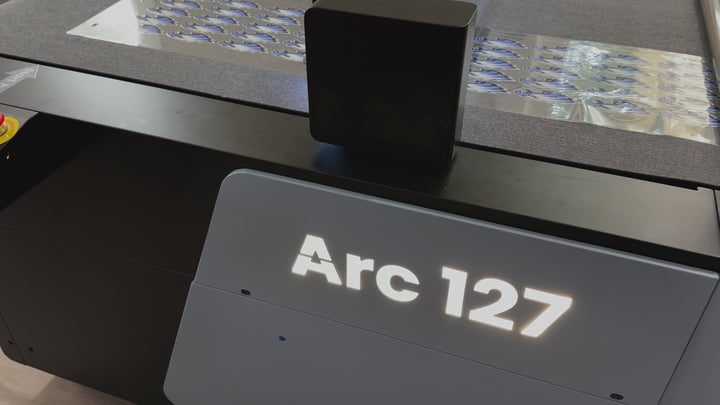

THE ARC 127 CUTTER

$11,390.00
Shipping calculated at checkout.
SKU: DTFS-ARC127
Categories: DTF Equipment, New Products
amazon paymentsamerican expressapple paydankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbmaestromasterpaypalshopify payvisa

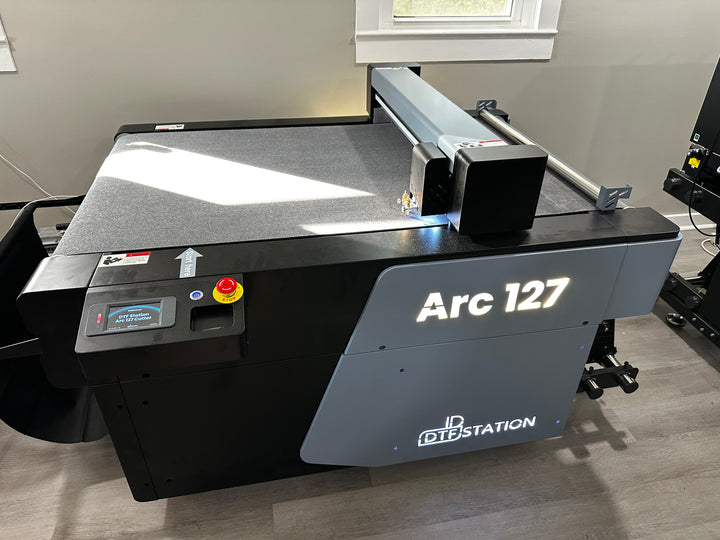

The Arc 127 cutter is DTF Station’s automatic roller cutter with a 27-inch maximum width. It supports sheet and roll cutting, single or dual blades, and works with DTF and UV DTF prints. Ideal for boosting productivity and efficiency

Features:

  • Automated Cutting: cut your DTF or UV DTF prints in an easier, less labor-intensive & less labor-expensive workflow
  • Seamless Integration: Integrates seamlessly with DigiRIP RIP Software and DTF Station’s line of printers
  • Simple, user-friendly interface: Easy to use with intuitive control panel
  • Versatile: Cuts various materials (see specifications below for details)

Benefits:

  • Easy to use and maintain
  • Ideal automatic prints cutting solutions or large format DTF printers (at least 24") and all UV DTF printers

Applications:

  • Vinyl Signage
  • POP-Packaging
  • Stencils
  • DTF/Heat Transfer
  • Window Tinting Film
  • Party Decorations
  • Vinyl Decals

Specifications:

  • Max. Media Width: 27.5”
  • Max. Cutting Size (Rolls): 26.8”x34.6”
  • Max. Cutting Size (Sheets): 23.6”x31.5”
  • Max. Cutting Force: 9.8N
  • Cutting Speed: 39.4"/s
  • Cutting Thickness: 0.5-3mm(with optional cutting tools)
  • Mechanical Resolution: 0.05mm
  • Machine Dimensions: 57.4"W x 51.2"D x 40"H
  • Packaging Dimensions: 67"W x 50"D x 46.8"H
  • Machine/Packaging Weight: 529 lbs/551 lbs
  • Electrical Parameters: 1.1KW / 220V / 5A
  • Suitable Users: Industrial-level/Printing factories

Tools:

  • High-Precision Passive Rotary Blade: Made from high quality tungsten steel, it supports full and half cuts, suitable for flexible materials like vinyl films and adhesive labels.
  • Large Diameter Snap Ring Blade (Optional): Ideal for cutting paper materials with a thickness of 1-1.3mm, providing smooth cutting edges.

Workflow:

  • CCD supports QR code selection, simplifying file management, and allowing flexible segment processing for improved operational convenience.
  • Allows setting any starting point, automatically returns to the origin after processing. Supports matrix processing for multiple sheets, reducing operational steps.

Structure:

  • Aluminum Vacuum Platform: Vortex design with strong suction, keeps material flat.
  • Conveyor System: Equipped with pneumatic clamps and roll material support, improving the adhesion between the material and the conveyor belt.
  • Feeding Design: Designed for processing long roll materials, saving installation time and enhancing cutting stability.
  • Multi-Functional Operation: Supports blind cutting, edge detection, and single-sheet processing.

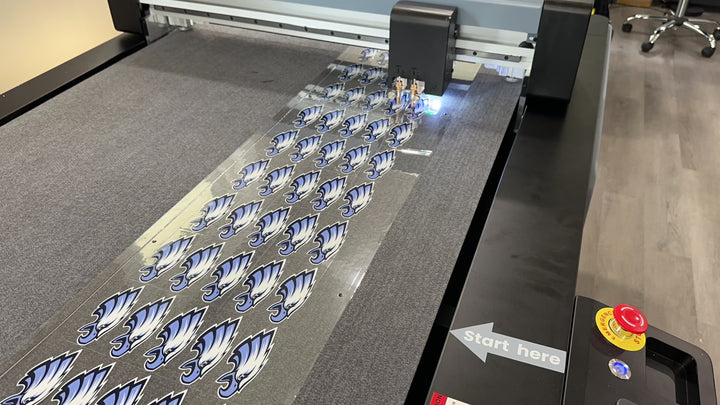

  • Cutting Precision: Camera accurately reads marks for precise contour cutting.
  • Independent electrical system and pneumatic system: Easier maintenance and  troubleshooting.
